Fully Sealed Water Cooled Permanent Magnet Synchronous Motor(Cantilever)

                 1、The rotor is directly connected to the  vacuum pump, with no coupling required.

                 2、Efficient heat dissipation and continuous high-power output.

                 3、Double speed expansion: 3000-6000rpm.

                 4、100% fully sealed design.

                 5、Customizable.

                  Photovoltaic, Semiconductor, New Energy Batteries, Chemical Industry, Food, Medical Care and Others.

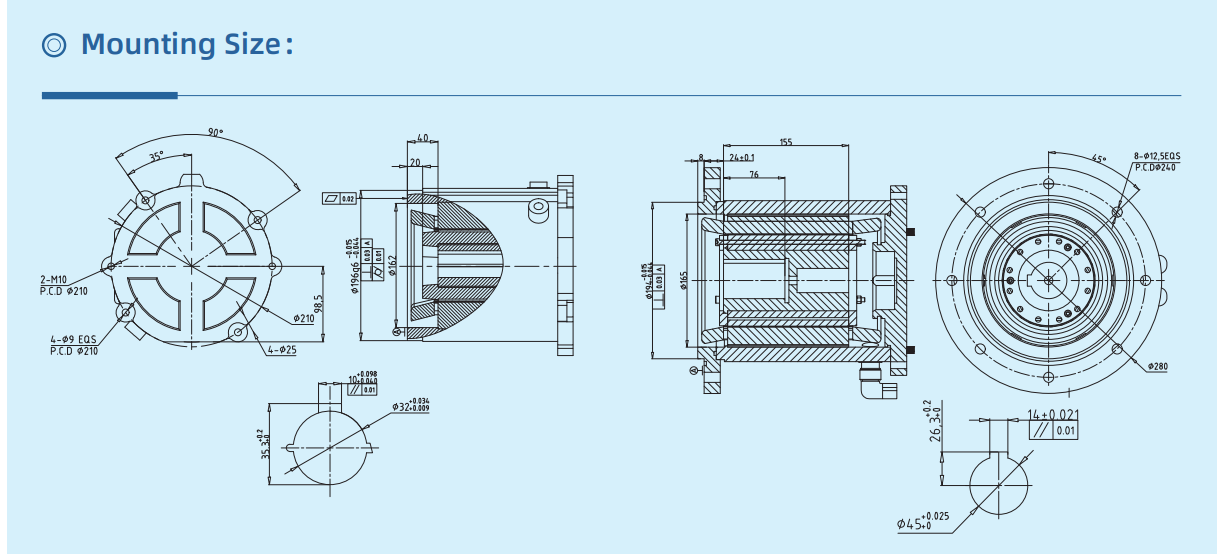

   Outline and Mounting Size of Water Cooled Motor

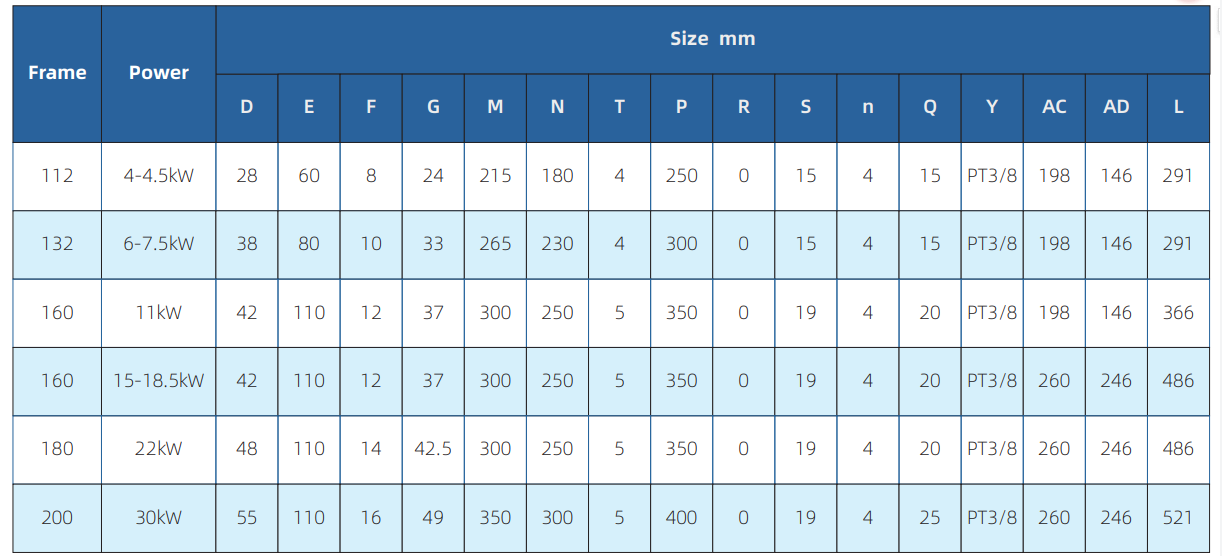

    Mounting Size of Water Cooled PMSM (B5)
