Full Sealed Water Cooled Induction Motor(Cantilever)

                   1、The rotor is directly connected to the vacuum pump, with no need for a coupling.

                   2、Efficient heat dissipation for continu-ous high-power output.

                   3、Simplified structure and low mainte-nance cost.

                   4、100% fully sealed design.

                   5、Customizable.

                    Photovoltaic, Semiconductor, New Energy Batteries, Chemical Industry, Food, Medical Care and Others.

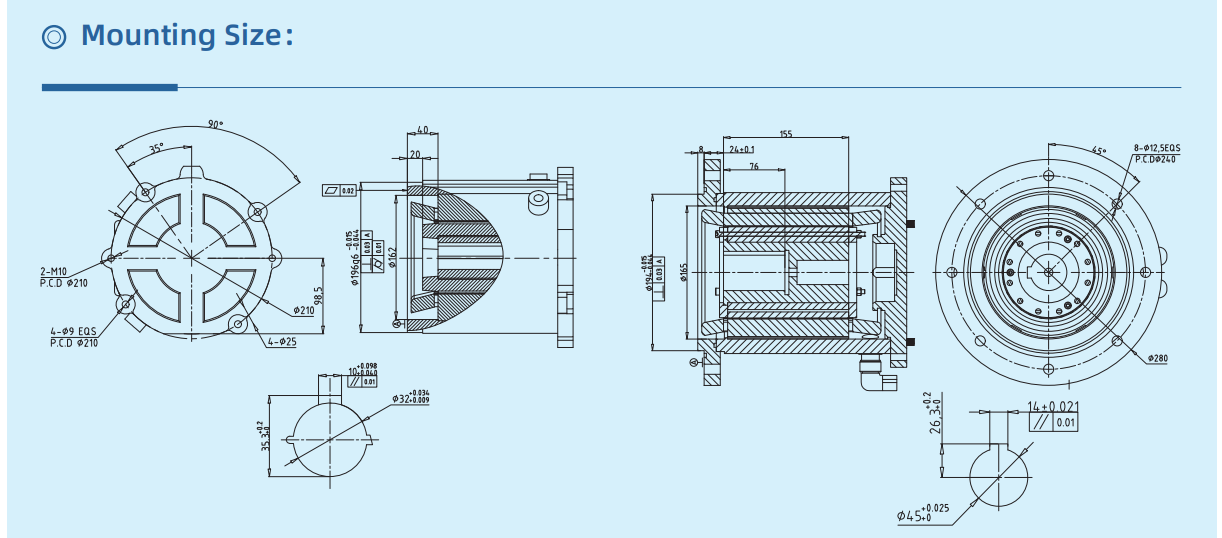

   Outline and Mounting Size of Water Cooled Motor

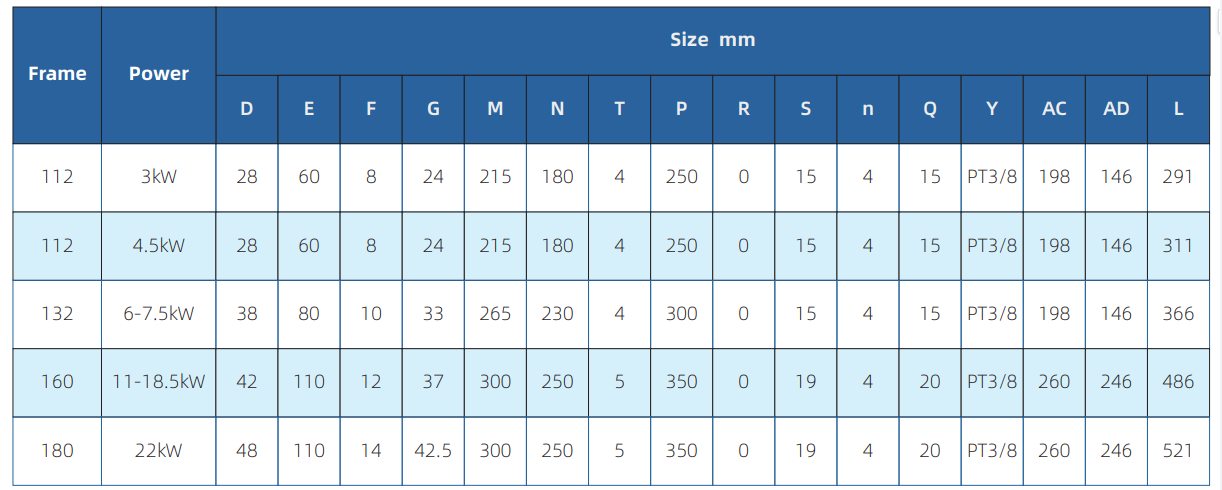

    Mounting Size of Water Cooled Induction Motor (B5)
